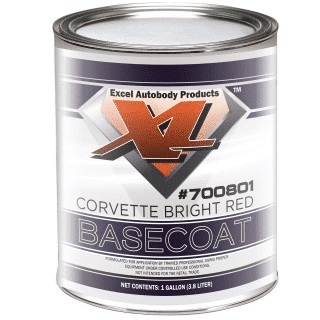

Excel Corvette Bright Red Base coat
DOES NOT SHIP OVERSEAS OR TO CALIFORNIA
This is a quick dry, good hiding, factory pack line of many popular colors. Various OEM colors are available. Ideal for overalls, large blend area repairs, or for ground-coat material. For a complete and current list of colors offered, please visit www.excelproducts.net Application Surface Preparation For dry sanding, a final sanding step of P500-P600 grit is reccomended using a maximum 100 grit step difference or less throughout the taken sanding steps. For wet sanding, a final sanding step of P800-P1000 grit is recommended using a maximum of 200 grit step difference or less throughout the sanding steps. Clean area with a good grade wax and grease remover such as #91001 and wipe dry with a clean cloth. Wipe area with tack cloth to remove any dust or dirt particles. Mixing Directions • 2 Part Excel Basecoat • 1 Part Excel Urethane Reducer • Spray Gun Set-up • Spray Gun: Fluid tip: Application pressure: • Compliant Gravity feed 1.3-1.5mm 30 PSI at the spray gun air inlet • Gravity feed HVLP 1.3-1.5mm 10 PSI max at air cap • Siphon feed 1.6-1.8mm 40-50 PSI Application Apply 2 – 4 single coats or until full coverage is achieved. Drying Schedule Allow each coat to flash off for approximately 5 to 10 minutes at 70°F. Prior to clear coat application, allow a minimum of 20 minutes flash time at 70°F and a maximum of 24 hours flash time at 70°F. Should this maximum time be exceeded, scuff surface and apply another coat.
Cleaning of Equipment: Clean equipment with lacquer thinner.
- Mixing Ratio 2:1 by vol. w/reducer
- Pot life Indefinite, if not catalyzed
- Viscosity @ Gun 13 – 15 sec #4 Zahn
- Recommended Film Thickness Approx. 0.4 – 0.8 mil
- Flash Point 53°F TCC
- Air Pressure @ Gun 30 PSI gravity feed,
- 10 PSI max at cap HVLP, 40-50 PSI siphon feed
- Coverage @ 0.6 mil 286 sq ft/g
- VOC @ Gun Maximum of 6.8 lb/gal in ready to spray form
